Variable Instances for Multi-Instance Processing and Chaining 1.0

Public Working Draft 16 December 2009

Copyright ©2009 XBRL International Inc., All Rights Reserved.

This version:
<http://www.xbrl.org/Specification/instances/PWD-2009-12-16/instances-PWD-2009-12-16.html>
Editors:
Herm Fischer, UBMatrix / Mark V Systems <fischer@markv.com>
Victor Morilla, Banco de España <victor.morilla@bde.es>
Andy Harris, UBMatrix <andy.harris@ubmatrix.com>
Contributors:
Cliff Binstock, Coyote Reporting <cliff.binstock@coyotereporting.com>
Paul Bull, Morgan Stanley <paul.bull@morganstanley.com>
Masatomo Goto, Fujitsu <mg@jp.fujitsu.com>
Walter Hamscher, Standard Advantage / Consultant to PricewaterhouseCoopers LLP <walter@hamscher.com>
Ignacio Hernández-Ros, Reporting Estandar S.L. <ignacio@hernandez-ros.com>
Roland Hommes, Rhocon / Consultant to Netherlands Tax and Customs Administration <roland@rhocon.nl>
Andy Harris, UBMatrix <andy.harris@ubmatrix.com>
Takahide Muramoto, Fujitsu <taka.muramoto@jp.fujitsu.com>
Hitoshi Okumura, Fujitsu <okmr@jp.fujitsu.com>
Pablo Navarro Salvador, Atos Origin sae <pablo.navarro@atosorigin.com>
Michele Romanelli, Banca d'Italia <michele.romanelli@bancaditalia.it>
Nathan Summers, CompSci Resources <nathan.summers@compsciresources.com>
Masaru Uchida, Fujitsu <m-uchida@jp.fujitsu.com>

Status

Circulation of this Public Working Draft is unrestricted. This document is normative. Other documents may supersede this document. Recipients are invited to submit comments to formula-feedback@xbrl.org, and to submit notification of any relevant patent rights of which they are aware and provide supporting documentation.

Abstract

This specification is provides the syntax and semantics for treatment of instances as a first class variables object and relationships to support multi-instance processing and variable-set evaluation chaining.

Table of Contents

1 Introduction
1.1 Background
1.2 Relationship to other work
1.3 Language independence
1.4 Terminology
1.5 Document conventions (non-normative)
1.6 Namespaces and namespace prefixes
1.7 XPath usage
2 Syntax
2.1 Instance resource element
2.2 Instance-variable relationships
2.3 Formula-instance relationships
2.4 Chaining by instance relationships
2.5 Variables-scope relationships
2.6 Chaining by variables-scope relationships

Appendices

A Normative schema
B References
C Intellectual property status (non-normative)
D Acknowledgements (non-normative)
E Document history (non-normative)
F Errata corrections in this document

Table

1 Namespaces and namespace prefixes

Examples

1 A = B + C with C = D + E as dependent formula
2 A = B + C with C = D + E as dependent formula

Definitions

chaining by instance relationships
chaining by variables scope
formula-instance relationship
instance resource
instance-variable relationship
variables-scope relationship


1 Introduction

The variable instances specification defines syntax for identification of instances as variable-set objects, so that multiple instances can be processed, and so that chaining by both instance relationships and variables-scope can be supported.

It provides relationships that allow variables to be bound explicitly to specified instances, and that allow formula results to be directed explicitly to a specified instance.

It provides a relationship that allows explicit declaration of in-scope variables from another variable set, forming the basis for both chained variable sets and tuple generation (see tuples specification).

Each instance is independent of the other; it may have a different DTS, or be an instance with some commonality of parts to other DTSes, but deemed independent of other instance DTSes.

1.1 Background

This specification is a member of a suite of similar specifications that define specific types of criteria that can be used to select facts from one or more input XBRL instance. It enhances the fact selection capabilities of the XBRL Variables Specification [VARIABLES], the output production of the XBRL Formulas Specification, [FORMULA], and forms the basis for the tuple output production by the XBRL Formula Tuples Specification [FORMULATUPLES].

1.2 Relationship to other work

This specification depends upon the XBRL Specification [XBRL 2.1], and the XBRL Variables Specification [VARIABLES]. In the event of any conflicts between this specification and the specifications upon which it depends, this specification does not prevail.

1.3 Language independence

The official language of XBRL International's own work products is English and the preferred spelling convention is UK English.

1.4 Terminology

This specification is consistent with the definitions of any of the terms defined in specifications that it depends on.

1.5 Document conventions (non-normative)

Documentation conventions follow those set out in the XBRL Variables Specification [VARIABLES].

1.6 Namespaces and namespace prefixes

Namespace prefixes [XML NAMES] will be used for elements and attributes in the form ns:name where ns is the namespace prefix and name is the local name. Throughout this specification, the mappings from namespace prefixes to actual namespaces is consistent with Table 1.

The prefix column in Table 1 is non normative. The namespace URI column is normative.

Table 1: Namespaces and namespace prefixes
Prefix Namespace URI
instances http://xbrl.org/2010/variable/instance
xbrlvarinste http://xbrl.org/2010/filter/variable/instance/error
eg http://example.com/
fn http://www.w3.org/2005/xpath-functions
link http://www.xbrl.org/2003/linkbase
xbrli http://www.xbrl.org/2003/instance
xfi http://www.xbrl.org/2008/function/instance
xbrldi http://xbrl.org/2006/xbrldi
xbrldt http://xbrl.org/2005/xbrldt
xl http://www.xbrl.org/2003/XLink
xlink http://www.w3.org/1999/xlink
xs http://www.w3.org/2001/XMLSchema
xsi http://www.w3.org/2001/XMLSchema-instance
gen http://xbrl.org/2008/generic
variable http://xbrl.org/2008/variable
iso4217 http://www.xbrl.org/2003/iso4217

1.7 XPath usage

XPath usage is identical to that in the XBRL Variables Specification [VARIABLES].

2 Syntax

This specification only provides a textual declaration of syntax constraints when those constraints are not expressed by the normative schema supplied with this specification.

Explanations of elements and attributes are only supplied when explanations are not already provided in other specifications.

Unless explicitly stated otherwise, a reference to a specific element MUST be read as a reference to that element or to any element in its substitution group.

2.1 Instance resource element

An instance resource is declared by a <instanaces:instance> element.

The syntax for the <instances:instance> element is defined by the normative schema supplied with this specification.

The instance resource of an input instance document represents the loaded instance with its accompanying DTS, with a context element of its <xbrli:xbrl> element. It is of type variable:parameter, so that the semantics of parameter also apply to the instance resource. (The parameter type is always element(xbrli:xbrl), its nodes are treated as validated PSVI typed nodes.)

Instances can be loaded and saved by a formula processor in a similar manner as a formula processor does for its usual source input instance (and formula output instances), this is left unspecified to be an implementation issue.

Fact and general variables that are bound to elements of an instance are isolated to that instance and the DTS of that instance.

  • The processor must associate each such variable only to taxonomy information of its own DTS.
  • The node of such variable is deemed validated, and has the PSVI value of the corresponding DTS.
  • In the same manner as an ordinary org.w3c DOM node knows which document it belongs to, a fact or general variable bound to a fact must correctly reference the DTS of the fact's instance document. Therefore the XPath2, function-registry functions, and custom functions must preserve sufficient formula processor reference information to associate the correct DTS with each bound variable. For example root, node-name, QName, and namespace URI functions know of each input instance variable in its own DTS (and don't intermix or mingle DTS element definitions or linkbase relationships with those of another input instance's DTS).
  • Filters with knowledge of DTS link relationships, such as the dimensions filter and preliminary conceptRelation filter, refer only to the DTS that contains the element of the instance which is the context of the filter; all parameters to the filter (e.g., source of dimension, members of dimension, axes) must be of the same DTS as the element under consideration.
  • Functions with knowledge of DTS relationships generally have an optional argument which is the xbrli:xbrl element if the respective DTS, such as may be supplied by using the instance resource's name as a variable QName, or any relevant expression such as $var/ancestor::xbrli:xbrl or root(.)/xbrli:xbrl.

Output instances that are produced by the formula element, source, and aspect rules, have the DTS of output instance determined by source elements (and their original input instance associated DTS). Intermixing output facts with source or aspect rules of incompatible input instance DTSes will lead to invalid output instances, and should be avoided by formula authors (but is not intended to be detected automatically).

An output instance produced by a formula element with no sources (e.g., all aspects created by explicit aspect rules) must have the output DTS corresponding to the implied (ordinary) input DTS as it would be in the absence of any use of features of this specification.

Processing order dependency is implied by instance-variable relationships that depend on facts produced by formulas with formula-instance relationships to the same instance for the same named variable, and by variables-scope relationships where expression terms of a variable-set that is a target of a variables-scope relationship reference variables of the source variable set.

An instance with the QName <instances:standard-input-instance> refers to the standard normal source input instance to a formula processor, and with the QName <instances:standard-output-instance> refers to the standard normal output instance for production of formula result items and result tuples.

2.2 Instance-variable relationships

An instance-variable relationship is a specific relationship between an <instances:instance> and a factVariable or a generalVariable expressed by an XLink arc.

To declare an instance-variable relationship an XLink arc MUST:

The arcrole value, http://xbrl.org/arcrole/2010/instance-variable, is declared in the normative schema for messages.

Instance-variable relationships MUST be expressed by generic arcs as indicated by the restrictions imposed by the arcrole declaration in the normative schema.

2.3 Formula-instance relationships

An formula-instance relationship is a specific relationship between a formula and an <instances:instance> expressed by an XLink arc.

To declare an formula-instance relationship an XLink arc MUST:

The arcrole value, http://xbrl.org/arcrole/2010/formula-instance, is declared in the normative schema for messages.

Formula-instance relationships MUST be expressed by generic arcs as indicated by the restrictions imposed by the arcrole declaration in the normative schema.

2.4 Chaining by instance relationships

Chaining by instance relationships is a form of chaining, or staging result items of one formula, to be used as input terms by a subsequent formula, by explicit specification that the dependent terms are obtained as results from other formulas.

This form of chaining can only relate the fact item produced by one formula to an input term of a subsequent variable set. See below Chaining by variables scope for chaining by use of variable set in-scope variables visibility, which can also be used for tuples production. This form of chaining provides maximal isolation of the result-producing formula from the chained dependent value consuming formula.

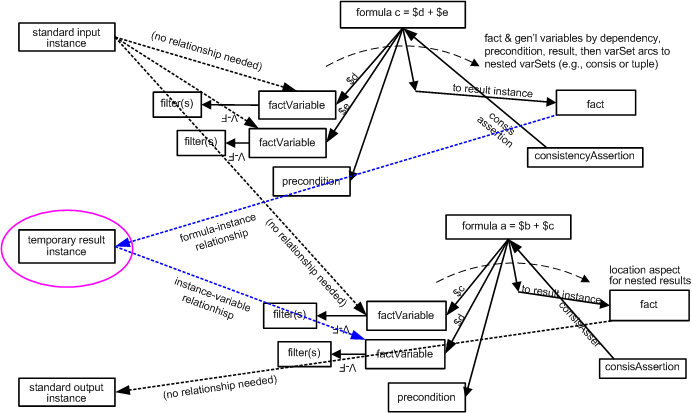

Example 1: A = B + C with C = D + E as dependent formula

This example shows use of instance-variable and formula-instance relationships to relate two formulas, one producing a = b + c and the second producing c = d + e, to each other. The c = d + e formula produces its output fact item in an intermediate scratch-pad instance to be used by the dependant a = b + c formula.

2.5 Variables-scope relationships

An variables-scope relationship is a specific relationship between two variable sets and an expressed by an XLink arc.

This relationship makes the in-scope variables of the relationship's source variable set visible as in-scope variables of the relationship's target variable-set.

If the source is a formula, the optional @name attribute allows associating an in-scope variable, with the name specified by this attribute, to the factVariable node of the source formula. The factVariable is deemed validated, it's value and aspects all have the PSVI typed values.

If the source is a variableAssertion, the optional @name attribute allows associating an in-scope variable with the name specified by this attribute, to the test expression of the source assertion. The test expression result is deemed a boolean atomic value.

This can implement a form of chaining, and also is used to provide visibility to the location aspect of a parent tuple, to implement output of child factVariables, for tuples production (see tuples specification).

Any of the variables made in-scope by this relationship may have the same variable name as a variable of the target variable-set, in which case the variable of the target variable-set is accessible, and the like-named variable of the source variable-set is not available in the target variable-set.

To declare an variables-scope relationship an XLink arc MUST:

The arcrole value, http://xbrl.org/arcrole/2010/variables-scope, is declared in the normative schema for messages.

variables-scope relationships MUST be expressed by <instances:variables-scope-arc> as indicated by the restrictions imposed by the arcrole declaration in the normative schema.

2.6 Chaining by variables-scope relationships

Chaining by variables scope is a form of chaining, or staging in-scope variables and result items of one value assertion, formula, or consistency assertion, to be used as input terms by a subsequent formula, by explicit specification that the dependent variable set has in-scope access to the prior variable set's variables and produced formula fact.

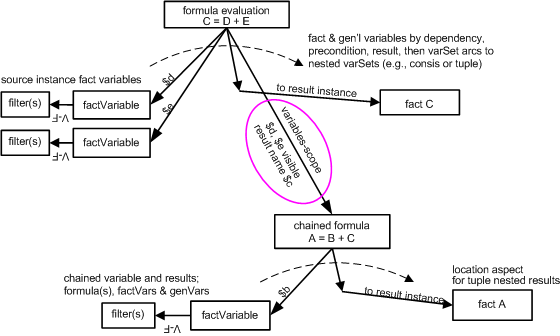

Example 2: A = B + C with C = D + E as dependent formula

This example shows use of variables-scope to relate two formulas, one producing a = b + c and the second producing c = d + e, to each other, with this relationship. The c = d + e formula produces its output fact item in the standard output instance, and makes it available as a named result of in-scope variables, to be used by the dependant a = b + c formula.

Appendix A Normative schema

The following is the XML schema provided as part of this specification. This is normative. Non-normative versions (which should be identical to these except for appropriate comments indicating their non-normative status) are also provided as separate files for convenience of users of the specification.

NOTE: (non-normative) Following the schema maintenance policy of XBRL International, it is the intent (but is not guaranteed) that the location of non-normative versions of these schemas on the web will be as follows:

  1. While any schema is the most current RECOMMENDED version and until it is superseded by any additional errata corrections a non-normative version will reside on the web in the directory http://www.xbrl.org/2008/ - during the drafting process for this specification this directory should contain a copy of the most recent published version of the schema at http://www.xbrl.org/2010/variable/instance.xsd.
  2. A non-normative version of each schema as corrected by any update to the RECOMMENDATION will be archived in perpetuity on the web in a directory that will contain a unique identification indicating the date of the update.
  1. While any schema is the most current RECOMMENDED version and until it is superseded by any additional errata corrections a non-normative version will reside on the web in the directory http://www.xbrl.org/2008/. During the drafting process for this specification this directory should contain a copy of the most recent published version of the schema at http://www.xbrl.org/2010/variable-instance.xsd.
  2. A non-normative version of each schema as corrected by any update to the RECOMMENDATION will be archived in perpetuity on the web in a directory that will contain a unique identification indicating the date of the update.
<schema xmlns:xbrli="http://www.xbrl.org/2003/instance" xmlns:link="http://www.xbrl.org/2003/linkbase" xmlns="http://www.w3.org/2001/XMLSchema" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:generic="http://xbrl.org/2008/generic" xmlns:variable="http://xbrl.org/2008/variable" xmlns:instances="http://xbrl.org/2010/variable/instance" targetNamespace="http://xbrl.org/2010/variable/instance" elementFormDefault="qualified" attributeFormDefault="unqualified">
<annotation>
<appinfo>
<!-- arc from an instance resource to a factVariable or generalVariable to specify that it's source is the instance of the resource instead of the default input instance of the formula processor -->
<link:arcroleType id="instance-variable" cyclesAllowed="undirected" arcroleURI="http://xbrl.org/arcrole/2010/instance-variable">
<link:definition>
Formula variable has an instance source
</link:definition>
<link:usedOn>
generic:arc
</link:usedOn>
</link:arcroleType>
<!-- arc from a formula:formula to an instance resource to specify that it's target is the instance of the resource instead of the default output instance of the formula processor -->
<link:arcroleType id="formula-instance" cyclesAllowed="undirected" arcroleURI="http://xbrl.org/arcrole/2010/formula-instance">
<link:definition>
Formula facts go into specified instance target
</link:definition>
<link:usedOn>
generic:arc
</link:usedOn>
</link:arcroleType>
<!-- arc from a variable-set to another variable-set to provide visibility of source's in-scope variables to target if a formula, then name on this arc gives visibility to the formula's result in the result's instance, the result behaves as if it were a factVariable in the source's in-scope variable set the to-end variable set has access to the values and aspects of the from-end variables (and formula result) but does not impact covering within the from-end variable set; to-end has implicit filtering available to match the from-side's aspects -->
<link:arcroleType id="variables-scope" cyclesAllowed="undirected" arcroleURI="http://xbrl.org/arcrole/2010/variables-scope">
<link:definition>
Provides visibility of source's variables to target and if source is a formula and name is present, provides visibility of the resulting fact produced
</link:definition>
<link:usedOn>
instances:variablesScopeArc
</link:usedOn>
</link:arcroleType>
</appinfo>
</annotation>
<import namespace="http://www.xbrl.org/2003/instance" schemaLocation="http://www.xbrl.org/2003/xbrl-instance-2003-12-31.xsd"/>
<import namespace="http://xbrl.org/2008/generic" schemaLocation="http://www.xbrl.org/2008/generic-link.xsd"/>
<import namespace="http://xbrl.org/2008/variable" schemaLocation="http://www.xbrl.org/2008/variable.xsd"/>
<!-- a resource corresponding to an instance name allows it to be referenced by the formula processor (e.g., java code) to associate with an input file (if there is one) or with an output file (if the contents of the instance are to be persisted) formula resource is a parameter allowing it to be referenced globally in an assertion message or custom function implementation, or to be referenced by a variable-set relationship so that it can be used as a general variable parameter in functions requiring an instance argument -->
<!-- instance now based on parameter to get parameter semantics in assertion messages, custom functions, etc -->
<element id="instance" name="instance" substitutionGroup="variable:parameter">
<!-- note: it would be better to change parameter to a type (in variable file) so it can be extended here to have a trace element and any other extra elements needed later -->
</element>
<!-- original definition of instance not based on parameter (excluding it from messages and custom functions) <element id="instance" name="instance" substitutionGroup="variable:resource"> <complexType mixed="true"> <complexContent > <extension base="variable:resource.type"> <attribute name="name" type="QName" use="required"/> <attribute name="trace" type="string" use="optional"/> </extension> </complexContent> </complexType> </element> -->
<!-- qnames corresponding to the standard input xbrl instance (of variables spec) and output xbrl instance (of formula spec) -->
<element id="standard-input-instance" name="standard-input-instance" type="string" abstract="true"/>
<element id="standard-output-instance" name="standard-output-instance" type="string" abstract="true"/>
<!-- variable scope arc see http://xbrl.org/arcrole/2010/variable-scope above name attribute is optional only if from element is formula or value-assertion -->
<element id="variables-scope-arc" name="variablesScopeArc" substitutionGroup="generic:arc">
<complexType>
<complexContent>
<extension base="generic:genericArcType">
<attribute name="name" type="variable:QName" use="optional"/>
</extension>
</complexContent>
</complexType>
</element>
</schema>

Appendix B References

FORMULA
XBRL International Inc.. "XBRL Formulae 1.0"
Phillip Engel, Herm Fischer, Victor Morilla, Jim Richards, Geoff Shuetrim, David vun Kannon, and Hugh Wallis.
(See http://www.xbrl.org/Specification/formula/CR-2008-12-31/formula-CR-2008-12-31.html)
FORMULATUPLES
XBRL International Inc.. "XBRL Tuples"
Herm Fischer, and Victor Morilla.
(See http://www.xbrl.org/Specification/formulaTuples/PWD-2009-12-16/formulaTuples-PWD-2009-12-16.html)
GENERIC LINKS
XBRL International Inc.. "XBRL Generic Links 1.0"
Mark Goodhand, Ignacio Hernández-Ros, and Geoff Shuetrim.
(See http://www.xbrl.org/Specification/gnl/REC-2009-06-22/gnl-REC-2009-06-22.html)
VARIABLES
XBRL International Inc.. "XBRL Variables 1.0"
Phillip Engel, Herm Fischer, Victor Morilla, Jim Richards, Geoff Shuetrim, David vun Kannon, and Hugh Wallis.
(See http://www.xbrl.org/Specification/variables/REC-2009-06-22/variables-REC-2009-06-22.html)
XBRL 2.1
XBRL International Inc.. "Extensible Business Reporting Language (XBRL) 2.1"
Phillip Engel, Walter Hamscher, Geoff Shuetrim, David vun Kannon, and Hugh Wallis.
(See http://www.xbrl.org/Specification/XBRL-RECOMMENDATION-2003-12-31+Corrected-Errata-2008-07-02.htm)
XLINK
W3C (World Wide Web Consortium). "XML Linking Language (XLink) Version 1.0"
Steve DeRose, Eve Maler, and David Orchard.
(See http://www.w3.org/TR/xlink/)
XML NAMES
W3C (World Wide Web Consortium). "Namespaces in XML 1.0 (Second Edition)"
Tim Bray, Dave Hollander, Andrew Layman, and Richard Tobin.
(See http://www.w3.org/TR/REC-xml-names/)
XML SCHEMA STRUCTURES
W3C (World Wide Web Consortium). "XML Schema Part 1: Structures Second Edition"
Henry S. Thompson, David Beech, Murray Maloney, and Noah Mendelsohn.
(See http://www.w3.org/TR/xmlschema-1/)

Appendix C Intellectual property status (non-normative)

This document and translations of it may be copied and furnished to others, and derivative works that comment on or otherwise explain it or assist in its implementation may be prepared, copied, published and distributed, in whole or in part, without restriction of any kind, provided that the above copyright notice and this paragraph are included on all such copies and derivative works. However, this document itself may not be modified in any way, such as by removing the copyright notice or references to XBRL International or XBRL organizations, except as required to translate it into languages other than English. Members of XBRL International agree to grant certain licenses under the XBRL International Intellectual Property Policy (www.xbrl.org/legal).

This document and the information contained herein is provided on an "AS IS" basis and XBRL INTERNATIONAL DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY THAT THE USE OF THE INFORMATION HEREIN WILL NOT INFRINGE ANY RIGHTS OR ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

The attention of users of this document is directed to the possibility that compliance with or adoption of XBRL International specifications may require use of an invention covered by patent rights. XBRL International shall not be responsible for identifying patents for which a license may be required by any XBRL International specification, or for conducting legal inquiries into the legal validity or scope of those patents that are brought to its attention. XBRL International specifications are prospective and advisory only. Prospective users are responsible for protecting themselves against liability for infringement of patents. XBRL International takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Members of XBRL International agree to grant certain licenses under the XBRL International Intellectual Property Policy (www.xbrl.org/legal).

Appendix D Acknowledgements (non-normative)

This document could not have been written without the contributions of many people including the participants in the Formula Working Group.

Appendix E Document history (non-normative)

DateAuthorDetails
13 December 2010Herm Fischer

First internal working draft created, drawing extensively on wiki page discussions in 2008 and early 2009, discussions with Fujitsu team at Bank of Japan hosted meeting in early 2009, and initial UBmatrix implementation.

Appendix F Errata corrections in this document

This appendix contains a list of the errata that have been incorporated into this document. This represents all those errata corrections that have been approved by the XBRL International Formula Working Group up to and including 16 December 2009. Hyperlinks to relevant e-mail threads may only be followed by those who have access to the relevant mailing lists. Access to internal XBRL mailing lists is restricted to members of XBRL International Inc.

No errata have been incorporated into this document.
